Ars-200
90 kg
Whole machine weight
IP55
protection grade
1
Number of drones that can be stored
70min
Charging time
>2hour
Backup battery life
Product Features
O&M SERVICES

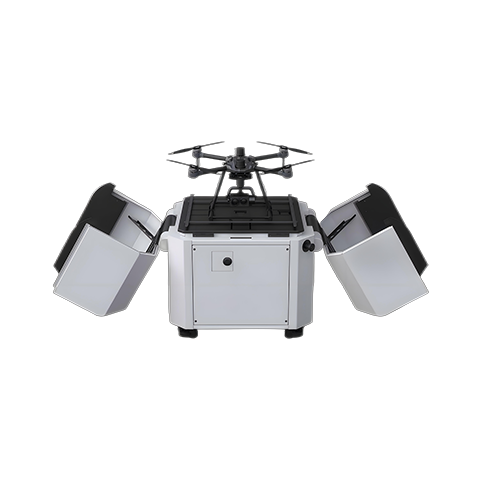

The Ars200 drone library adopts a small, lightweight, and integrated design, with dual fusion of visual and RTK landing functions, providing three-dimensional support from far to near and from the sky to the ground.
The following has evaluated to null or missing:
==> (getContentAttribute(content.id).cptd) [in template "site_3/product_detail.html" at line 64, column 41]
The following has evaluated to null or missing:
==> (getContentAttribute(content.id).cptd) [in template "site_3/product_detail.html" at line 74, column 45]The following has evaluated to null or missing:
==> (getContentAttribute(content.id).cptd) [in template "site_3/product_detail.html" at line 84, column 45]
The following has evaluated to null or missing:
==> (getContentAttribute(content.id).cptd) [in template "site_3/product_detail.html" at line 97, column 41]The following has evaluated to null or missing:
==> (getContentAttribute(content.id).cptd) [in template "site_3/product_detail.html" at line 108, column 41]
Ars-200
information
Whole machine weight
90 kg
Dimensions (excluding weather station when the hatch is open)
length： 1600 mm
width： 700 mm
height： 750 mm
External dimensions (cabin cover closed. excluding weather station)
length： 800 mm
width： 700 mm
height： 950 mm
Input voltage
220 VAC to 240 VAC，50 Hz to 60 Hz
Input power
300W to1300W
Ambient Temperature
-30°C to 50°C
protection grade
IP55
Number of drones that can be stored
1 tower
Output voltage
15.4 V to 17.6 V
Charging time
70minute
Working voltage
220 V AC
Waterproof grade
Air conditioning type
Battery capacity
12 AH /block
Output voltage
12 V /block
Type
Lead acid battery
Backup battery life
More than 2 hours
Access method
Wired/Wireless/4G/5G
Wind speed sensor
range：0~30m/s
measurement accuracy ：±3％
Operating environment：-30~85℃
Rain sensor
range：0.3～10mm/min
measurement accuracy ：±4％（Daily cumulative rainfall）
Operating environment：-40~60℃
Cabin temperature sensor
range：-40~80℃
measurement accuracy ：±0.3℃
curacy ：±0.3℃
Operating environment：-40~80℃：-40~80℃
Cabin humidity sensor
range：0～100%RH
measurement accuracy ：±3%RH
rement accuracy ：±3%RH
Operating environment：-40~80℃：-40~80℃
Resolution
1920*1080
O&M SERVICES
